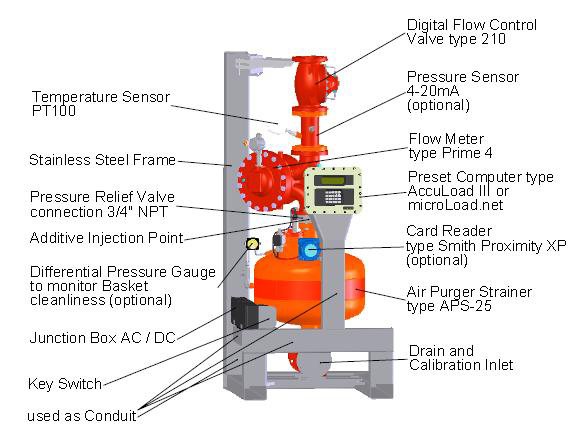

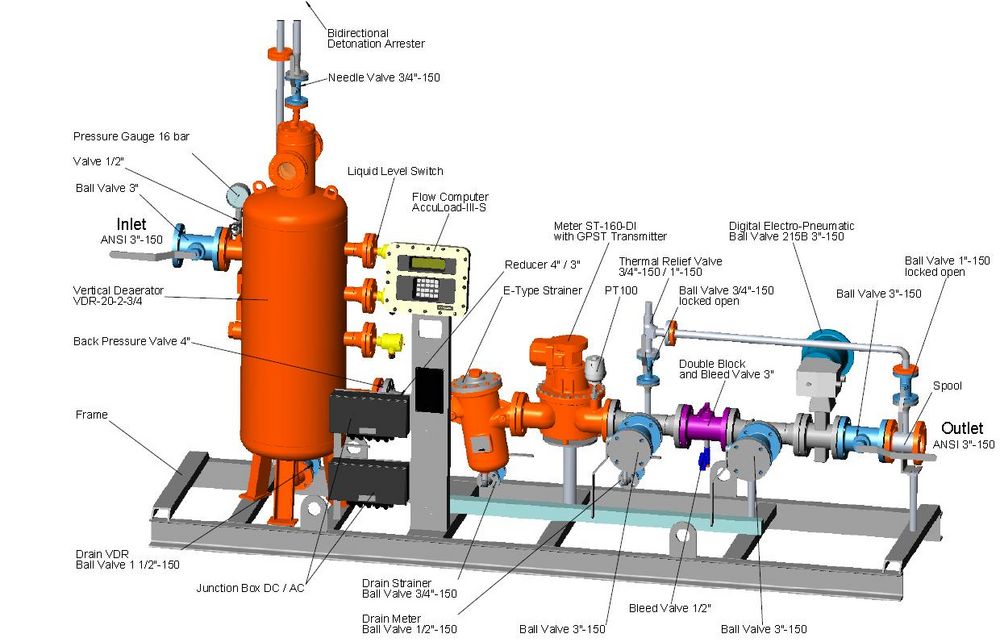

Standardized Measuring SKIDs for Liquids

PN/ANSI Max.Fluid Flow Max.Fluid Flow Max.Fluid Flow Max.Fluid Flow s-standard o-optional
m³/h bph gpm lb/min S AR DCV FC SRV TRV LA BPV NR BV VEA
PD Meter - 1" 10 / 150 9.00 1.43 39.63 s s s s o o o o o s o
PD Meter - 2" 10 / 150 34.00 5.41 149.70 s s s s o o o o o s o
PD Meter - 3" 10 / 150 68.00 10.81 299.40 s s s s o o o o o s o
Coriolis Meter - 1" 10 / 150 660.00 s s s s o o o o o s o
Coriolis Meter - 2" 10 / 150 2570.00 s s s s o o o o o s o
Coriolis Meter - 3" 10 / 150 6600.00 s s s s o o o o o s o
Coriolis Meter - 4" 10 / 150 12860.00 s s s s o o o o o s o
Coriolis Meter - 6" 10 / 150 29400.00 s s s s o o o o o s o
Turbine Meter - 2" 10 / 150 85.00 13.51 374.24 s s s s o o o o o s o
Turbine Meter - 3" 10 / 150 148.00 23.53 651.62 s s s s o o o o o s o
Turbine Meter - 4" 10 / 150 360.00 57.24 1585.03 s s s s o o o o o s o
Ultrasonic Meter - 6" 10 / 150 870.00 138.32 3830.50 s s s s o o o o o s o
Ultrasonic Meter - 8" 10 / 150 1524.00 242.30 6709.97 s s s s o o o o o s o
Ultrasonic Meter - 10" 10 / 150 2385.00 379.18 10500.84 s s s s o o o o o s o
Ultrasonic Meter - 12" 10 / 150 3625.00 576.33 15960.40 s s s s o o o o o s o

Fluids measuring SKIDs are design acc to DIN; API; OIML norms

The SKIDs can be design either unidirectional or bi-directional (loading or loading & unloading)

For other flow rates, dimensions, specs and special requests there will be design custom specific SKIDs

S
AR
DCV
FC
SRV
TRV
LA
BPV
NR
BV
VEA		Strainer
Air release
Digital Control Valve
Flow Computer
Safety Relief Valve
Thermal Relief Valve
Loading Arm
Back Pressure Valve
Non Return Valve
Ball Valve
Valve Electric Actuator
