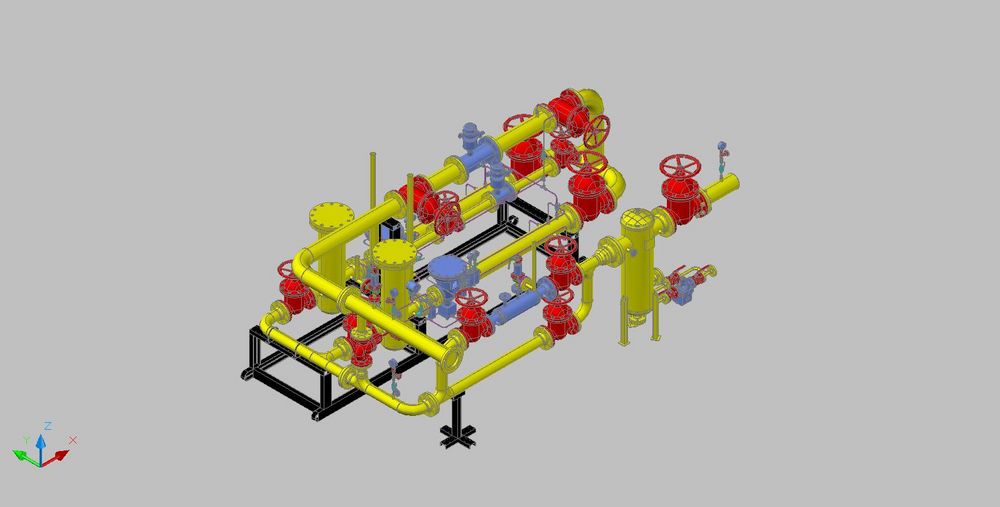

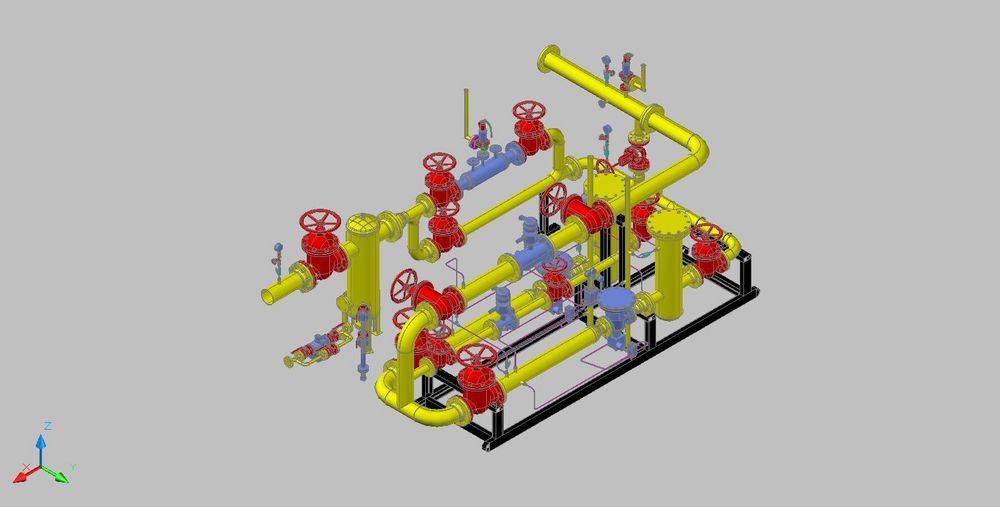

Standardized Measuring & Regulating Stations for natural gas

M&R Station Type	PN	Max.Gas Flow	Inlet Gas Flow	Outlet Gas Flow	Inlet Pressure Max/Min		Outlet Pressure Max/Min
M&R Station Type	bar	Nm³/h	m³/h	m³/h	bar	bar	bar	bar
D 1a	16	700	235	469	6	2	2	0.5
D 2a	16	1800	605	1205	6	2	2	0.5
D 3a	16	2800	941	1875	6	2	2	0.5
D 4a	16	4500	1513	3013	6	2	2	0.5
D 5a	16	7000	2353	4687	6	2	2	0.5
D 6a	16	10000	3362	6695	6	2	2	0.5
PD 1a	16	200	134	191	6	0.5	0.5	0.05
PD 2a	16	350	234	334	6	0.5	0.5	0.05
PD 3a	16	500	335	476	6	0.5	0.5	0.05
T 6a	25	10000	1444	3362	25	6	6	2
T 5a	25	6800	982	2286	25	6	6	2
T 4a	25	4500	650	1513	25	6	6	2
T 3a	25	2800	404	941	25	6	6	2
T 2a	25	1800	260	605	25	6	6	2
T 1a	25	700	101	235	25	6	6	2
T 6b	40	10000	1444	3362	40	6	6	2
T 5b	40	6800	982	2286	40	6	6	2
T 4b	40	4500	650	1513	40	6	6	2
T 3b	40	2800	404	941	40	6	6	2
T 2b	40	1800	260	605	40	6	6	2
T 1b	40	700	101	235	40	6	6	2
T 6c	64	10000	920	3362	64	10	6	2
T 5c	64	6800	625	2286	64	10	6	2
T 4c	64	4500	414	1513	64	10	6	2
T 3c	64	2800	258	941	64	6	6	2
T 2c	64	1800	166	605	64	10	6	2
T 1c	64	700	64	235	64	10	6	2

M&R Stations are design acc to ANRE/ANRGN; DVGW; DIN; API; OIML norms and according to Transgaz, OMV-Petrom, E-On and GDF Suez special requests
