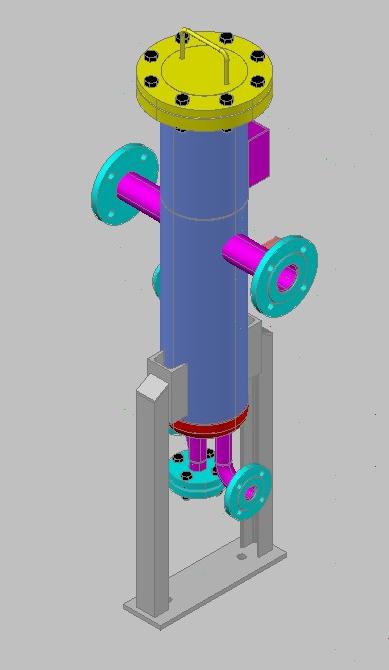

Standardized Filters

Type T.FVCF DN PN Flow Rate Filter Cartridge Δp max. Dn Width (L) Height(H) Total height from ground
[ mm ] [ bar ] [ m³/ h ] Tip VPZ [ bar] [ mm ] [ mm ] [ mm ] [ mm ]
1.1500 50 16,25,40 200 60 / 200 0,4 y0,5 50 450 620 -
1.200 80 6,25,40 400 90 / 400 0,4 y0,5 80 550 880 -
1.2500 100 16,25,40 800 120 / 600 0,4 y0,5 100 650 1100 -
1.300 150 16,25,40 1600 170 / 800 0,4 y0,5 150 700 1480 1680
