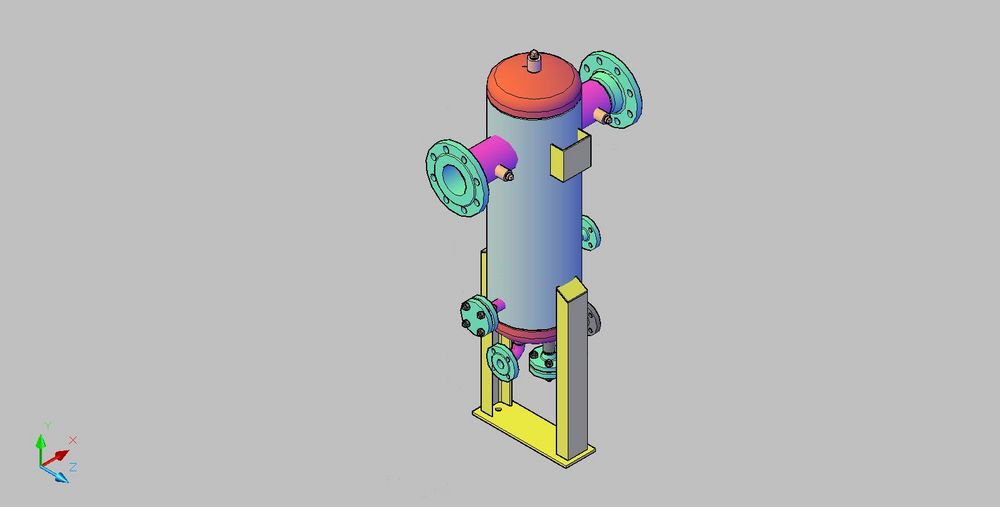

Standardized Cyclone Separators

Type T.SCPL - Flow Rate D B h1 h2 h3 h4 DN 1 DN 2 DN 3
DN 4 DN 5
[ mm ] [ mm ] [ mm ] [ mm ] [ mm ] [ mm ] [ mm ] [ mm ] [ mm ] [ mm ] [ mm ]
1.150 - 100 [m³/ h] 168.3 450 800 200 1000 200 50 25 25 25 25
1.200 - 275 [m³/ h] 219.1 550 950 250 1200 200 80 25 25 25 25
1.250 - 525 [m³/ h] 273 650 1050 300 1350 200 100 25 25 25 25
1.300 - 975 [m³/ h] 323.9 700 1150 300 1450 200 150 25 25 25 50
1.350 - 1450 [m³/ h] 355.6 750 1250 350 1600 200 150 25 25 25 50
1.400 - 2100 [m³/ h] 406.4 820 1450 400 1850 200 200 25 25 25 80
1.500 - 2900 [m³/ h] 508 960 1650 450 2100 200 250 25 25 25 80
1.600 - 4400 [m³/ h] 600 1100 1850 500 2350 200 300 25 25 25 100
1.700 - 6000 [m³/ h] 700 1160 2150 550 2700 200 300 25 25 25 150
1.800 - 7000 [m³/ h] 800 1300 2250 650 2900 200 400 25 25 25 200
1.900 - 9500 [m³/ h] 900 1500 2350 700 3050 200 400 25 25 25 200
