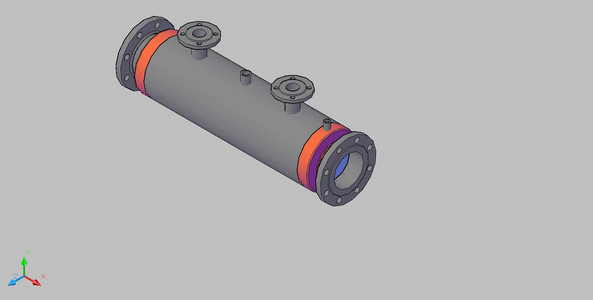

Standardized Horizontal Heat Exchanger

Type T.SCO - Heat Transfer Duty	D	a	DN 1	DN 2	b	c	h
Type T.SCO - Heat Transfer Duty	[ mm ]	[ mm ]	[ mm ]	[ mm ]	[ mm ]	[ mm ]	[ mm ]
1.100 - 9000 [ Kj/h ]	114.3	820	50	25	*	**	***
1.125 - 15000 [ Kj/h ]	139.7	850	80	50	*	**	***
1.150 - 30100 [ Kj/h ]	168.3	900	80	50	*	**	***
1.200 - 58600 [ Kj/h ]	219.1	1010	100	80	*	**	***
1.250 - 182000 [ Kj/h ]	273	1230	150	80	*	**	***
1.300 - 326400 [ Kj/h ]	323.9	1440	200	100	*	**	***
1.400 - 532370 [ Kj/h ]	406.4	1620	250	150	*	**	***
1.500 - 778000 [ Kj/h ]	508	1830	300	150	*	**	***

Heat Transfer Duty is given as informative value, the exactly figures being determined acc. to the client's process data
